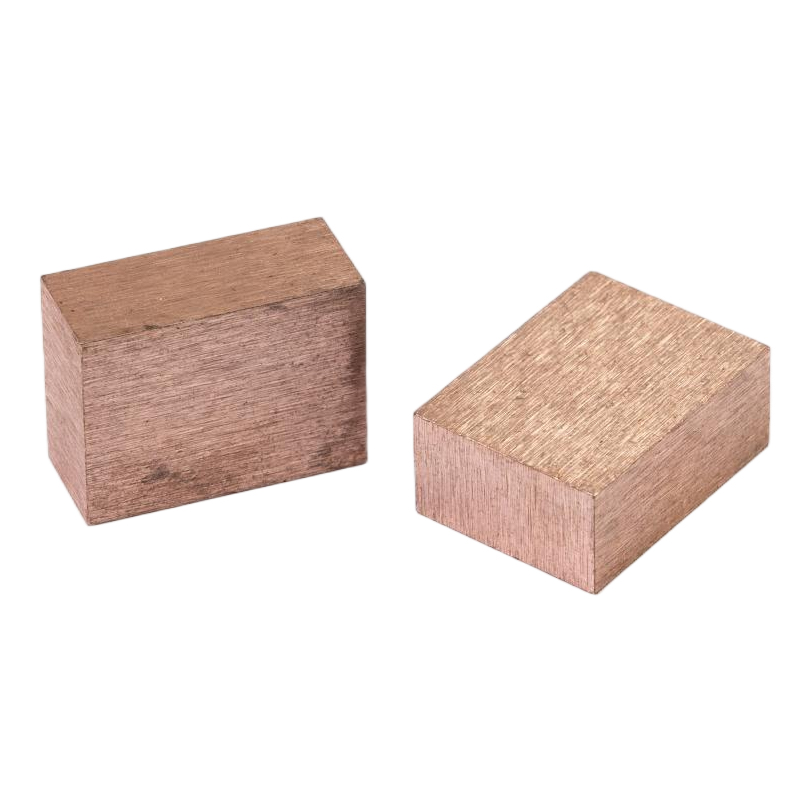

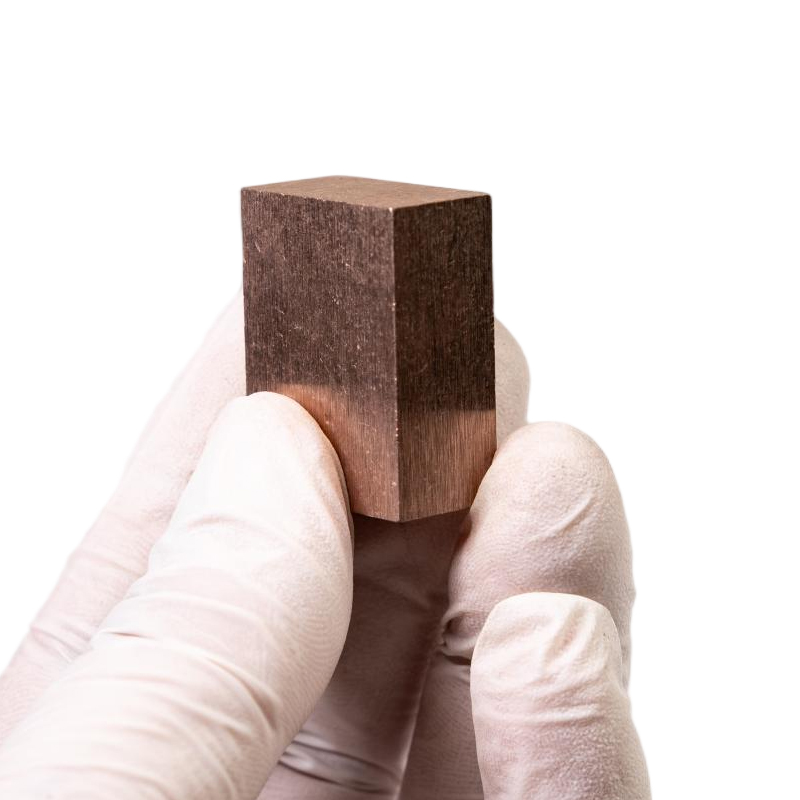

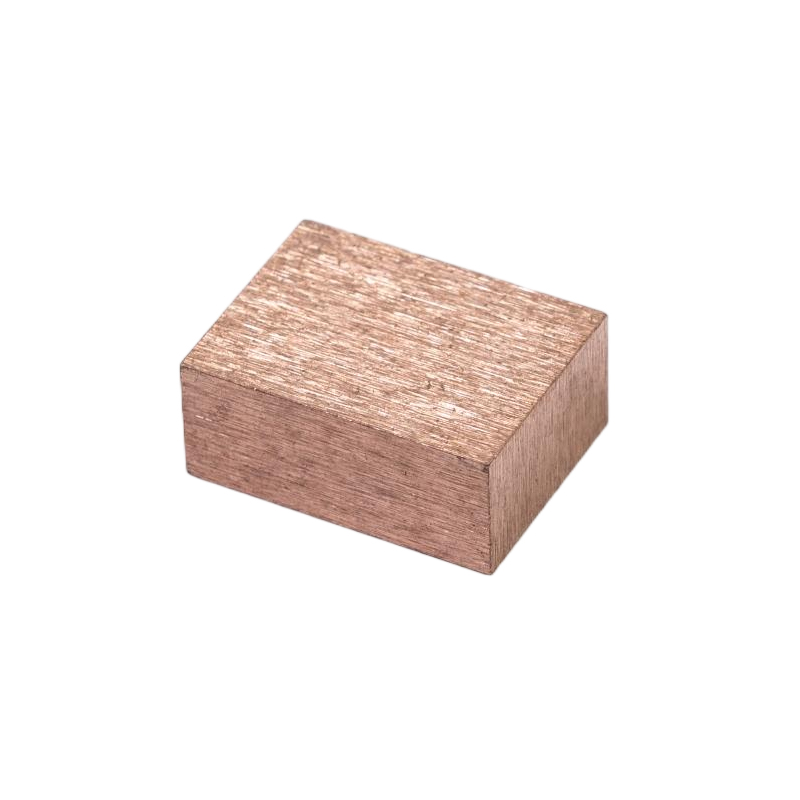

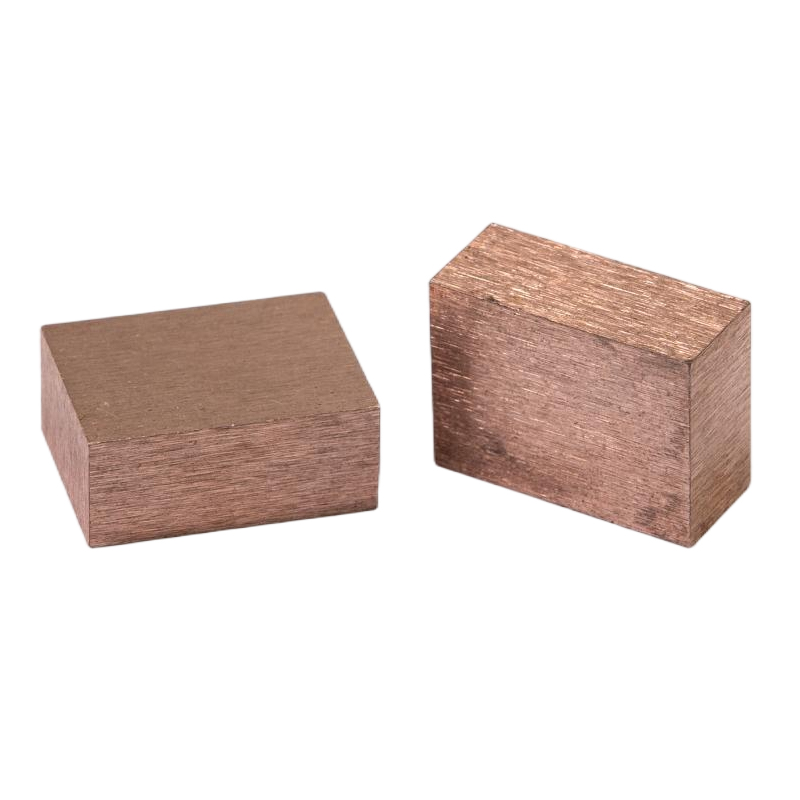

Our Custom Non-Standard Tungsten Copper Alloy Blocks are high-density, precision-machined rectangular and cubic components engineered for demanding thermal, electrical, and mechanical applications. Produced via advanced powder metallurgy (isostatic pressing, high-temperature sintering, and vacuum copper infiltration), these blocks combine the high hardness, low thermal expansion, and exceptional arc erosion resistance of tungsten with the high thermal and electrical conductivity of copper.
Engineered to exact customer drawings and dimensional specifications, these custom blocks deliver tight geometric tolerances, excellent flatness, and smooth surface finishes for EDM sparking electrodes, resistance welding dies, microelectronic heat sink bases, and high-voltage arc contacts.
Material Composition: Available in standard and custom grades (W80Cu20, W75Cu25, W70Cu30, W50Cu50)
Manufacturing Process: Isostatic Powder Pressing -> Vacuum Sintering -> Copper Infiltration -> Precision CNC Milling & Grinding
Length / Width / Thickness: Customized per drawing specifications
Machining Tolerance: Up to +/- 0.005 mm (Per drawing requirements)
Surface Finish: Fine milled, surface ground, or mirror polished (Ra 0.4 - Ra 1.6)
Custom Capabilities: CNC milling, surface grinding, wire EDM cutting, drilling, chamfering, and lapping according to 2D/3D technical drawings (PDF, STEP, CAD).
Parameter | Standard / Custom Capability |
Available Alloy Grades | W80Cu20 / W75Cu25 / W70Cu30 / Custom Ratios |
Form Factor | Non-Standard Block, Rectangular Plate, Square Cube |
Dimensional Range | Tailored to custom length, width, and thickness specs |
Parallelism & Flatness | High-precision surface grinding options available |
Quality Inspection | Density testing, CMM dimensional measurement, ultrasonic flaw check |
Poukisa chwazi nou:
1. Ou ka jwenn materyèl la pafè dapre egzijans ou nan pri a pi piti posib.
2. Nou ofri tou Reworks, FOB, CFR, CIF, ak pri livrezon pòt an pòt. Nou sijere ou fè kontra pou anbake ki pral byen ekonomik.
3. Materyèl nou bay yo konplètman verifye, dwa soti nan sètifika tès materyèl anvan tout koreksyon nan deklarasyon dimansyon final la. (Rapò yo pral montre sou kondisyon)
4. garanti bay yon repons nan lespas 24 èdtan (anjeneral nan menm èdtan an)
5. Ou ka jwenn altènativ stock, livrezon moulen ak minimize tan fabrikasyon.
6. Nou konplètman dedye a kliyan nou yo. Si li pa pral posib satisfè kondisyon ou apre yo fin egzamine tout opsyon, nou pa pral twonpe ou lè nou fè fo pwomès ki pral kreye bon relasyon kliyan.
