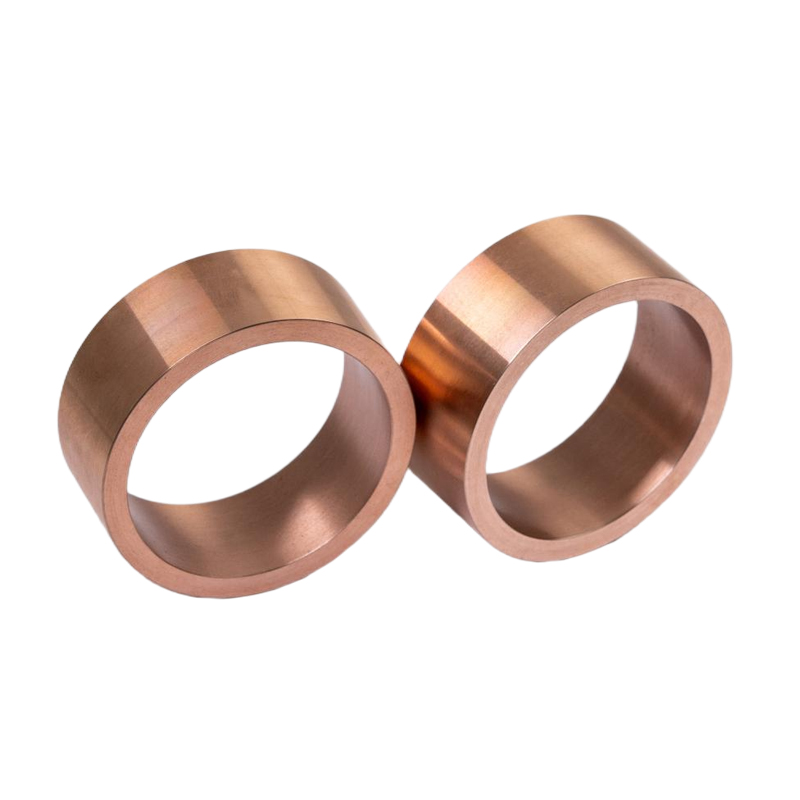

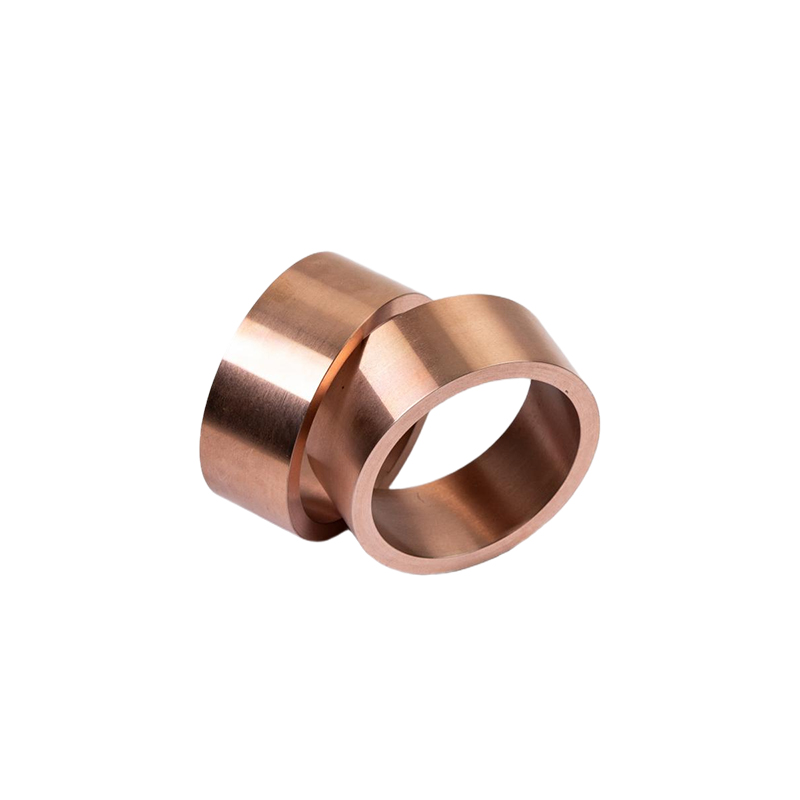

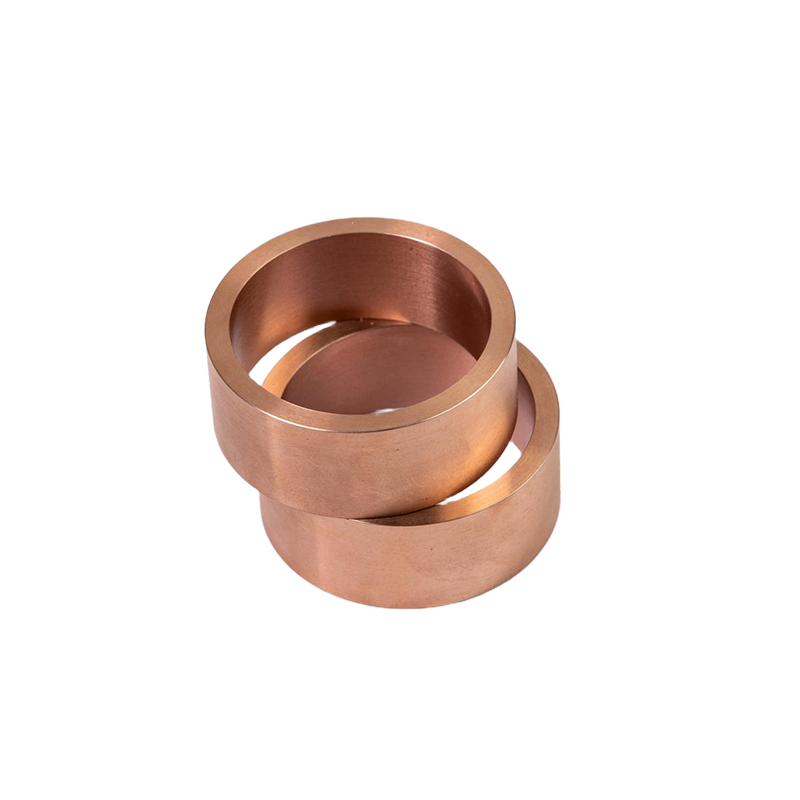

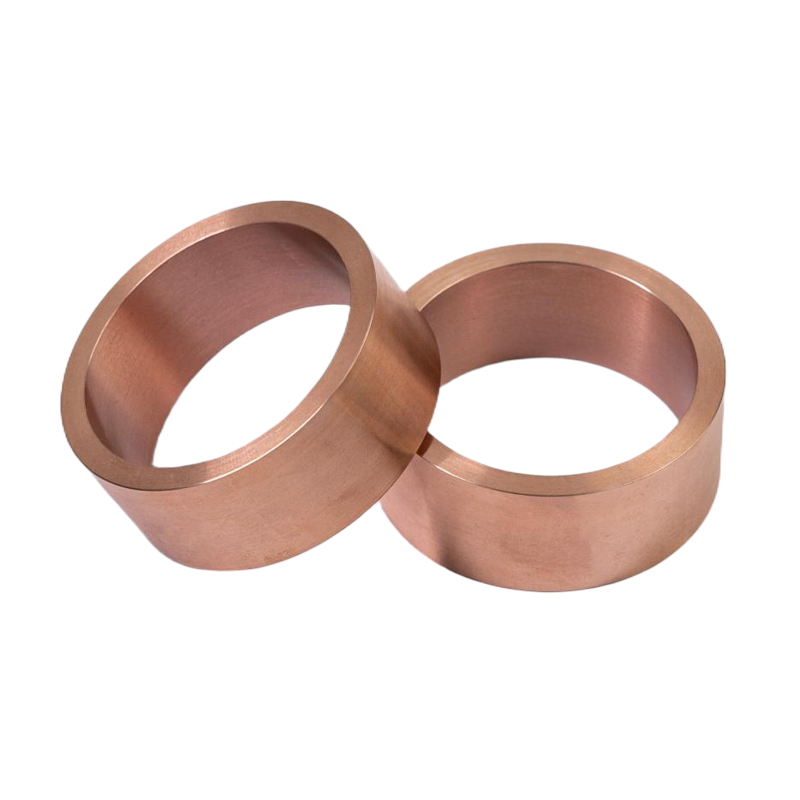

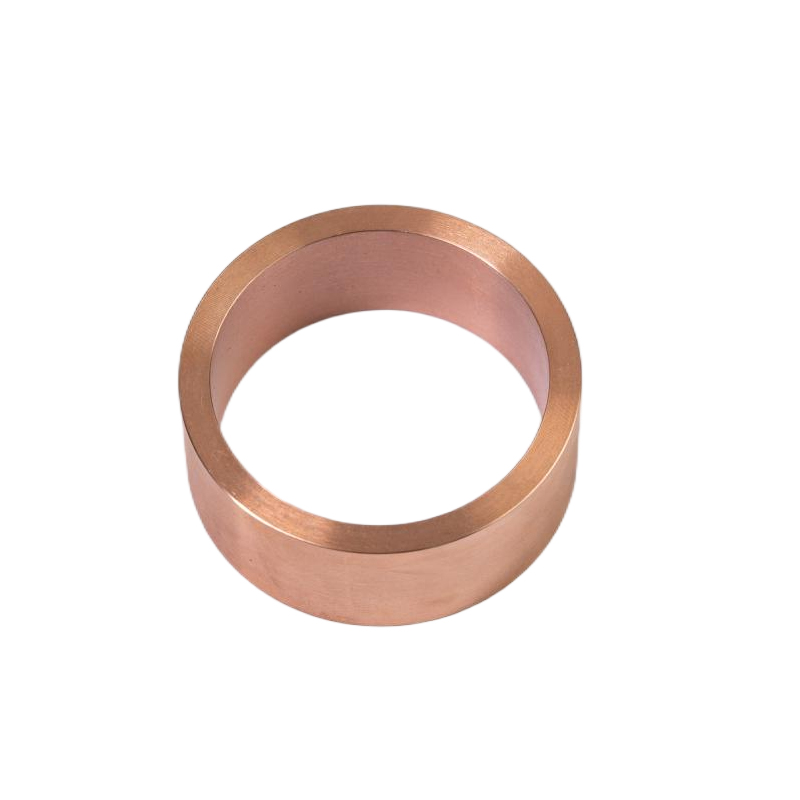

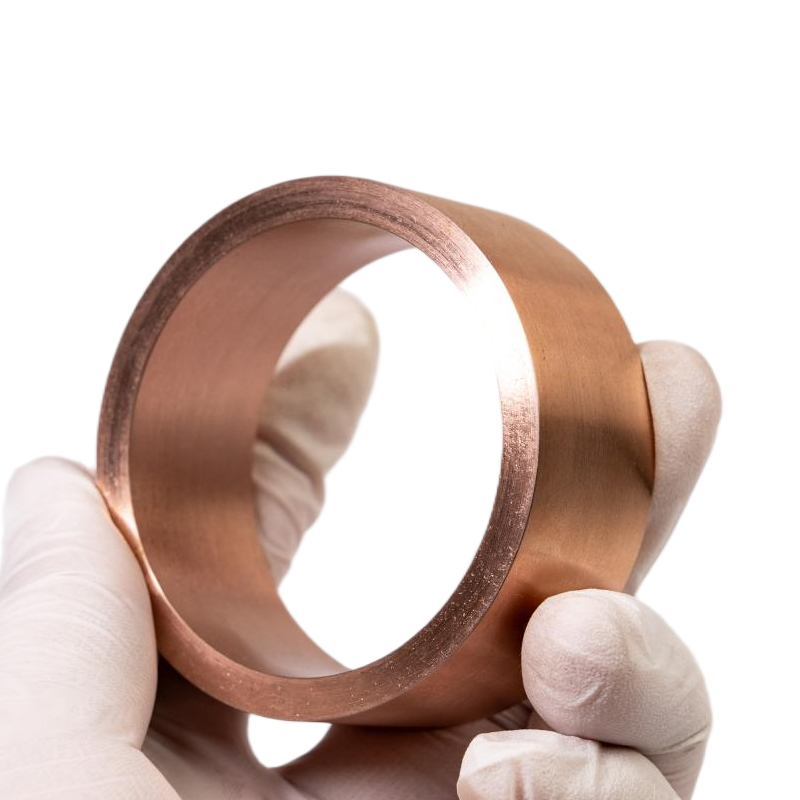

Our Custom Non-Standard Tungsten Copper Alloy Rings are high-density, precision-machined cylindrical components designed for extreme thermal, electrical, and mechanical environments. Produced via advanced powder metallurgy (isostatic pressing, high-temperature sintering, and vacuum copper infiltration), these rings integrate the high heat hardness, low thermal expansion, and arc erosion resistance of tungsten with the exceptional electrical and thermal conductivity of copper.
Engineered to exact customer dimensions and drawings, these custom rings and bushings deliver outstanding concentricity, tight wall-thickness tolerances, and smooth surface finishes for seam welding wheels, high-voltage arc contacts, EDM rotary electrodes, and wear-resistant guide sleeves.
Material Composition: Available in standard and custom grades (W80Cu20, W75Cu25, W70Cu30, W50Cu50)
Manufacturing Process: Isostatic Powder Pressing -> Vacuum Sintering -> Copper Infiltration -> Precision CNC Turning & Grinding
Outer Diameter (OD): Customized per drawing specs
Inner Diameter (ID): Customized per drawing specs
Height / Width: Customized cut-to-length and precision ground
Machining Tolerance: Up to +/- 0.005 mm (Per drawing requirements)
Surface Finish: Fine turned, ground, or mirror polished (Ra 0.4 - Ra 1.6)
Custom Capabilities: Precision lathe turning, internal boring, chamfering, oil-grooving, wire EDM, and surface lapping according to 2D/3D technical drawings (PDF, STEP, CAD).
Parameter | Standard / Custom Capability |
Available Alloy Grades | W80Cu20 / W75Cu25 / W70Cu30 / Custom Ratios |
Form Factor | Non-Standard Cylindrical Ring, Bushing, Sleeve |
Dimensional Range | Tailored to custom ID, OD, and height specifications |
Concentricity & Runout | Strict geometric tolerance control |
Quality Inspection | Density testing, CMM dimensional measurement, ultrasonic flaw check |
Poukisa chwazi nou:
1. Ou ka jwenn materyèl la pafè dapre egzijans ou nan pri a pi piti posib.
2. Nou ofri tou Reworks, FOB, CFR, CIF, ak pri livrezon pòt an pòt. Nou sijere ou fè kontra pou anbake ki pral byen ekonomik.
3. Materyèl nou bay yo konplètman verifye, dwa soti nan sètifika tès materyèl anvan tout koreksyon nan deklarasyon dimansyon final la. (Rapò yo pral montre sou kondisyon)
4. garanti bay yon repons nan lespas 24 èdtan (anjeneral nan menm èdtan an)
5. Ou ka jwenn altènativ stock, livrezon moulen ak minimize tan fabrikasyon.
6. Nou konplètman dedye a kliyan nou yo. Si li pa pral posib satisfè kondisyon ou apre yo fin egzamine tout opsyon, nou pa pral twonpe ou lè nou fè fo pwomès ki pral kreye bon relasyon kliyan.
