Our W80Cu20 Tungsten Copper Alloy Rods (80% Tungsten, 20% Copper) are engineered through a precision powder metallurgy pressing, high-temperature sintering, and copper infiltration process. Designed specifically for high-stress electrical contact and machining applications, W80Cu20 combines the superior hardness, thermal arc resistance, and low thermal expansion of tungsten with the excellent electrical and thermal conductivity of copper. It is the ideal material choice for EDM (Electrical Discharge Machining) electrodes, resistance welding tips, and high-voltage electrical Contacts.
Grade Material: W80Cu20 (80% W, 20% Cu)
Manufacturing Process: Powder Metallurgy Sintering & Copper Infiltration
Standard Length: 500 mm

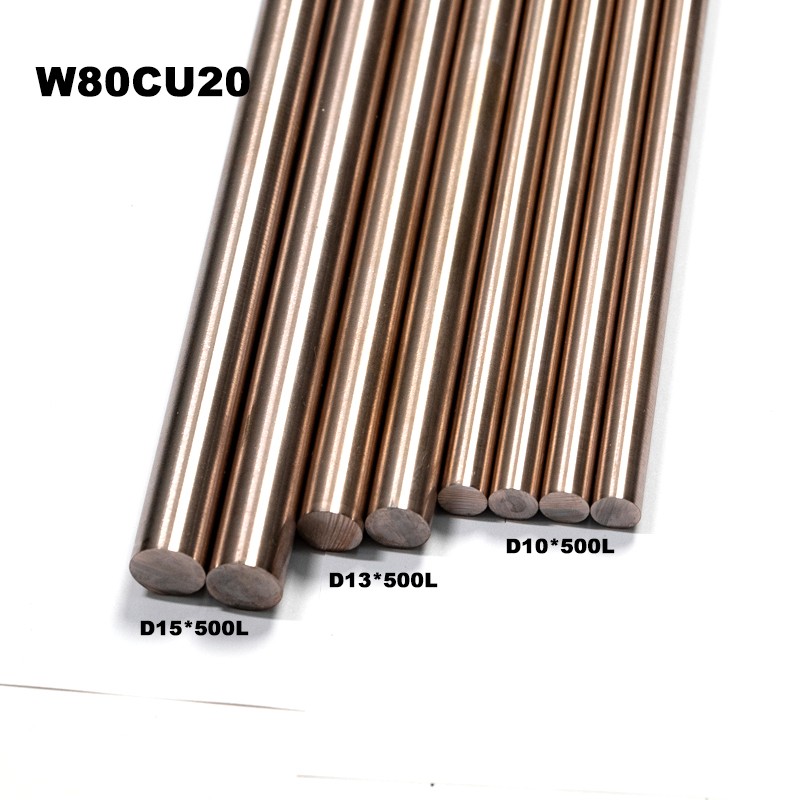

Available Diameters in Stock:
Diameter 10 mm x Length 500 mm (D10x500L)
Diameter 13 mm x Length 500 mm (D13x500L)
Diameter 15 mm x Length 500 mm (D15x500L)
Density: Approx. 15.15 g/cm3
Conductivity (IACS): Approx. 34% IACS
Hardness: Approx. 220 HB
Customization: Custom diameters, lengths, precision centerless grinding, and cut-to-length services available upon request.
Specification
| Grade | Diameter (D) | Length (L) | Material Composition | Primary Application |
| W80Cu20 | 10 mm | 500 mm | 80% Tungsten / 20% Copper | EDM Sparking & Fine Electrodes |
| W80Cu20 | 13 mm | 500 mm | 80% Tungsten / 20% Copper | Medium Resistance Welding & EDM |
| W80Cu20 | 15 mm | 500 mm | 80% Tungsten / 20% Copper | Heavy-Duty Welding & Arc Contacts |
Poukisa chwazi nou:
1. Ou ka jwenn materyèl la pafè dapre egzijans ou nan pri a pi piti posib.
2. Nou ofri tou Reworks, FOB, CFR, CIF, ak pri livrezon pòt an pòt. Nou sijere ou fè kontra pou anbake ki pral byen ekonomik.
3. Materyèl nou bay yo konplètman verifye, dwa soti nan sètifika tès materyèl anvan tout koreksyon nan deklarasyon dimansyon final la. (Rapò yo pral montre sou kondisyon)
4. garanti bay yon repons nan lespas 24 èdtan (anjeneral nan menm èdtan an)
5. Ou ka jwenn altènativ stock, livrezon moulen ak minimize tan fabrikasyon.
6. Nou konplètman dedye a kliyan nou yo. Si li pa pral posib satisfè kondisyon ou apre yo fin egzamine tout opsyon, nou pa pral twonpe ou lè nou fè fo pwomès ki pral kreye bon relasyon kliyan.
