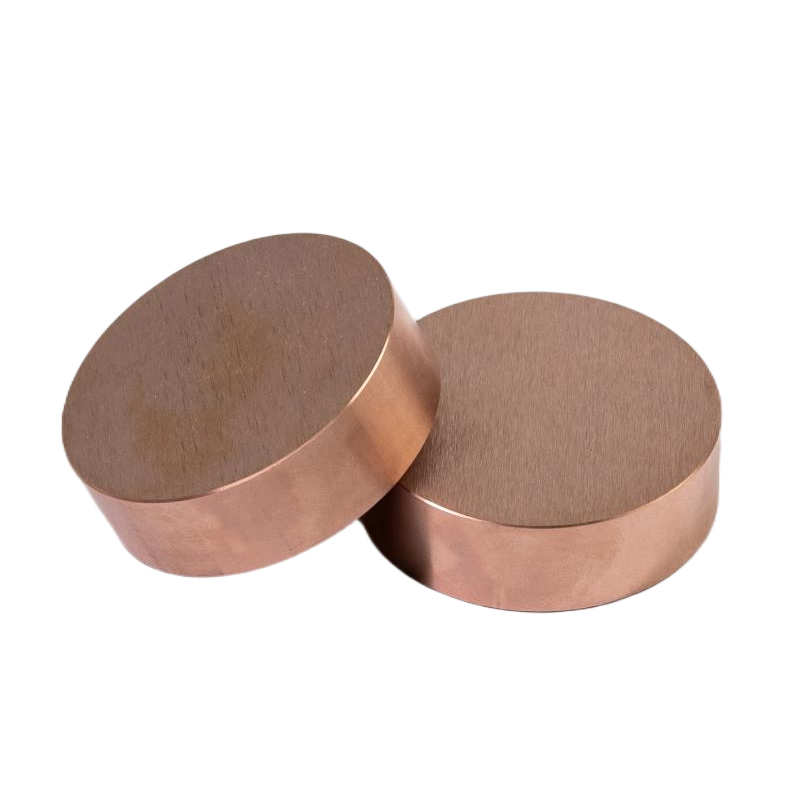

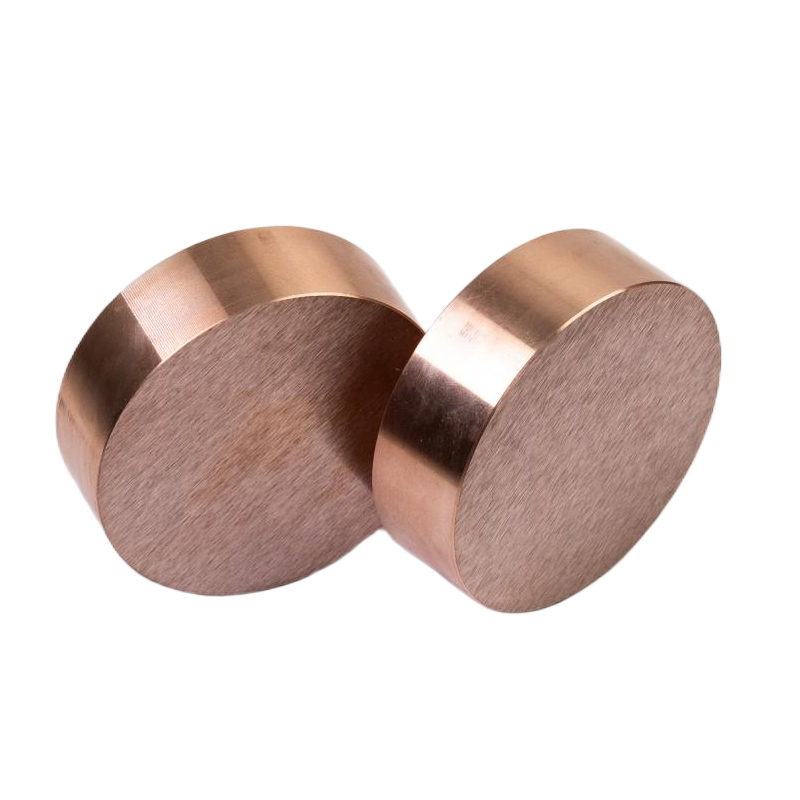

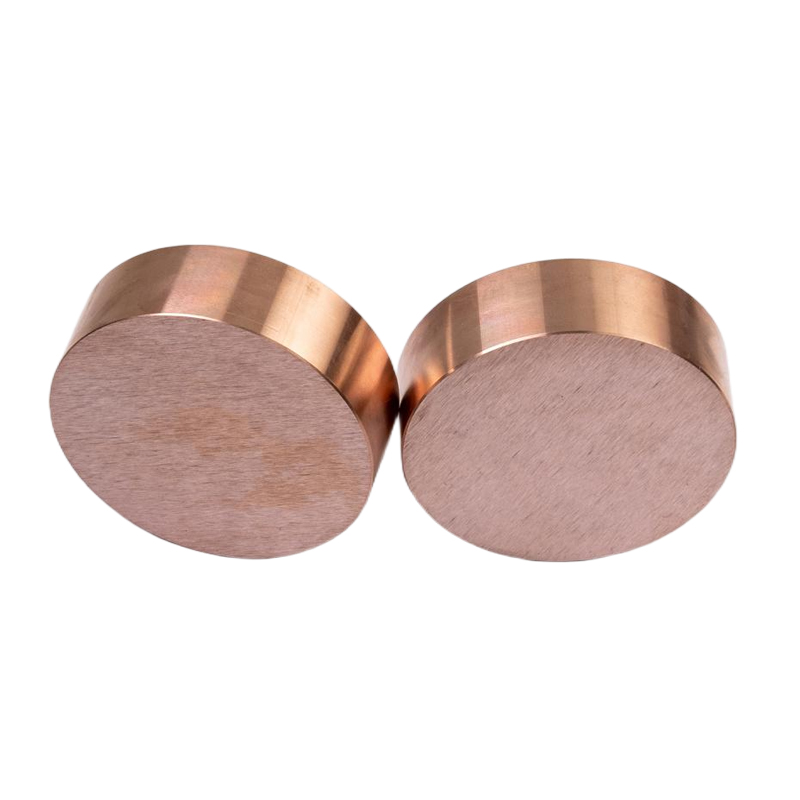

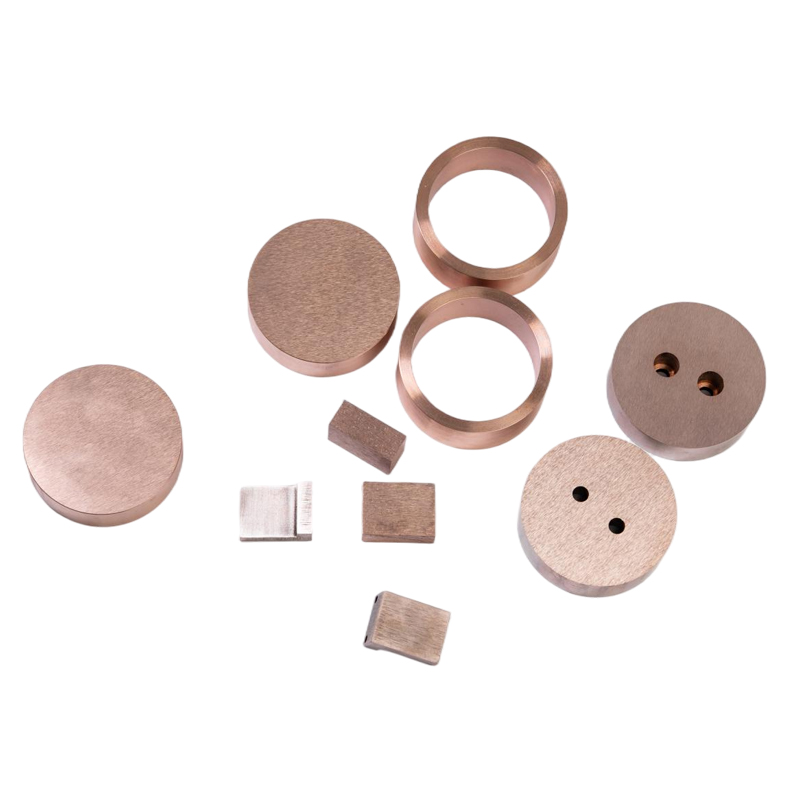

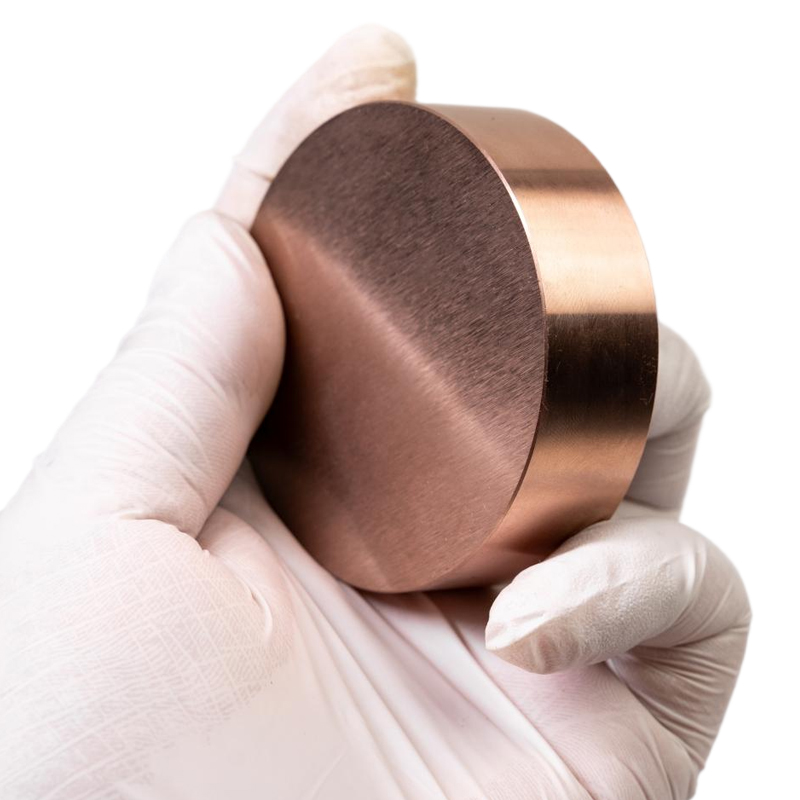

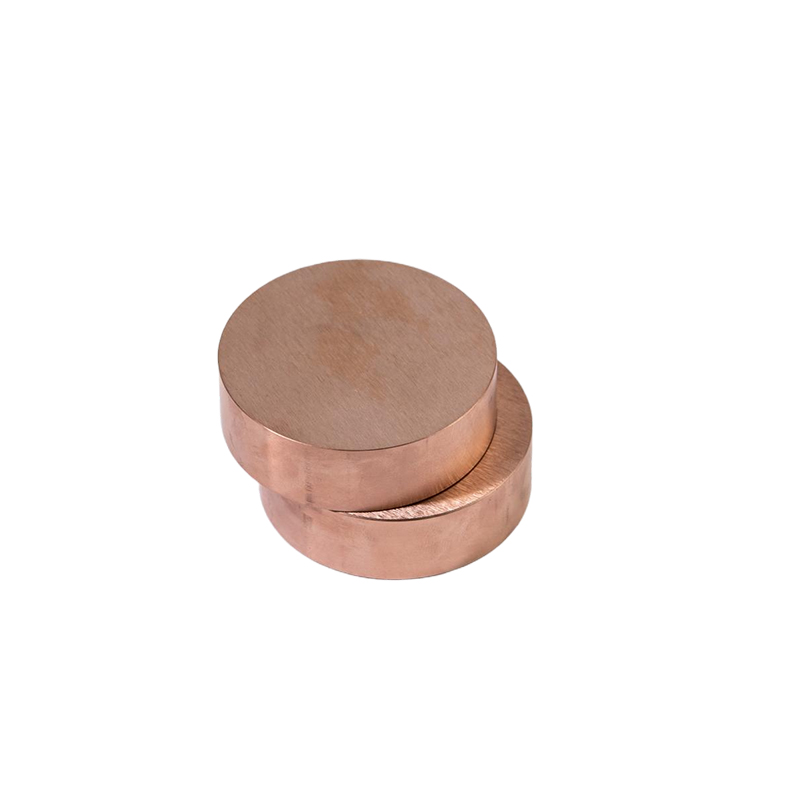

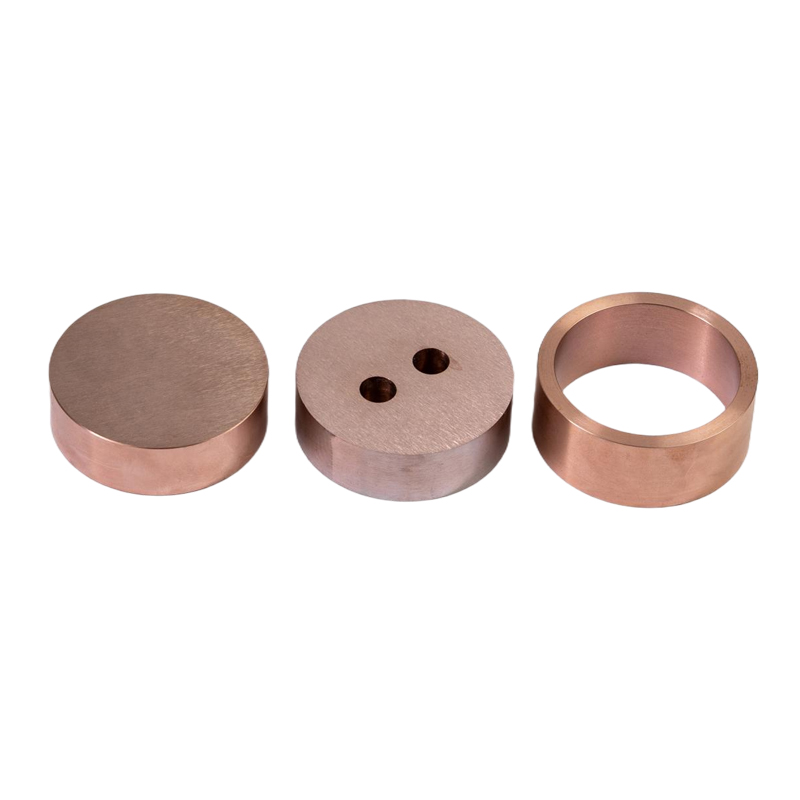

Our Custom Non-Standard W75Cu25 Tungsten Copper Round Bars and Discs are precision-engineered to meet specialized customer dimensions, drawings, and high-stress application requirements. Manufactured through advanced powder metallurgy (pressing, high-temperature vacuum sintering, and copper infiltration), the W75Cu25 alloy (75% Tungsten, 25% Copper) offers high density, superior thermal arc resistance, and exceptional mechanical hardness coupled with high electrical conductivity.
These custom-machined short round bars and thick discs feature a fine surface finish, uniform microstructure, and precise dimensional control, making them ideal for EDM sparking electrodes, heat dissipation substrates, high-voltage arcing contacts, and resistance welding tooling.
Material Grade: W75Cu25 / W75/Cu25 (75% Tungsten, 25% Copper)
Manufacturing Process: Isostatic Powder Metallurgy Sintering & Vacuum Copper Infiltration
Density: Approx. 14.50 g/cm3
Hardness: Approx. 190 - 210 HB
Conductivity (IACS): Approx. 38% IACS
Thermal Conductivity: Approx. 200 - 220 W/(m-K)
Custom Capabilities: Precision lathe turning, surface grinding, centerless grinding, wire EDM, drilling, and polishing according to 2D/3D customer drawings (PDF, CAD, STEP).
Parameter | Custom Specification / Capability |
Alloy Composition | W75Cu25 (75% W / 25% Cu) |
Form Factor | Non-Standard Short Round Bar, Thick Disc, Cylinder |
Diameter Range | Custom diameters available upon request |
Height / Thickness | Custom cut-to-length and precision ground thickness |
Machining Tolerance | Up to +/- 0.005 mm (Per drawing specs) |
Surface Quality | Fine turned, ground, or mirror polished (Ra 0.4 - Ra 1.6) |
Poukisa chwazi nou:
1. Ou ka jwenn materyèl la pafè dapre egzijans ou nan pri a pi piti posib.
2. Nou ofri tou Reworks, FOB, CFR, CIF, ak pri livrezon pòt an pòt. Nou sijere ou fè kontra pou anbake ki pral byen ekonomik.
3. Materyèl nou bay yo konplètman verifye, dwa soti nan sètifika tès materyèl anvan tout koreksyon nan deklarasyon dimansyon final la. (Rapò yo pral montre sou kondisyon)
4. garanti bay yon repons nan lespas 24 èdtan (anjeneral nan menm èdtan an)
5. Ou ka jwenn altènativ stock, livrezon moulen ak minimize tan fabrikasyon.
6. Nou konplètman dedye a kliyan nou yo. Si li pa pral posib satisfè kondisyon ou apre yo fin egzamine tout opsyon, nou pa pral twonpe ou lè nou fè fo pwomès ki pral kreye bon relasyon kliyan.
