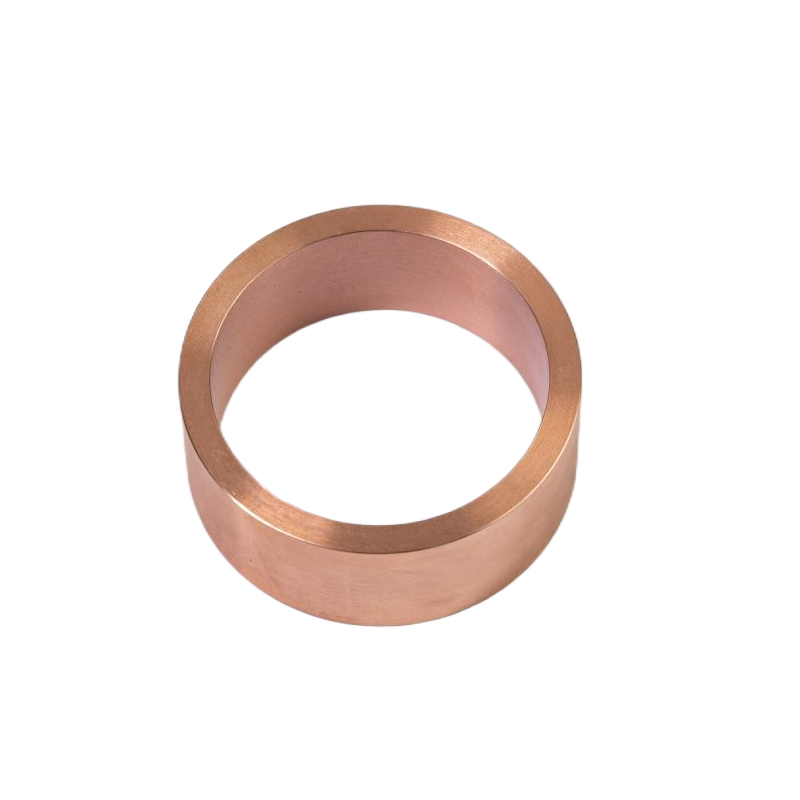

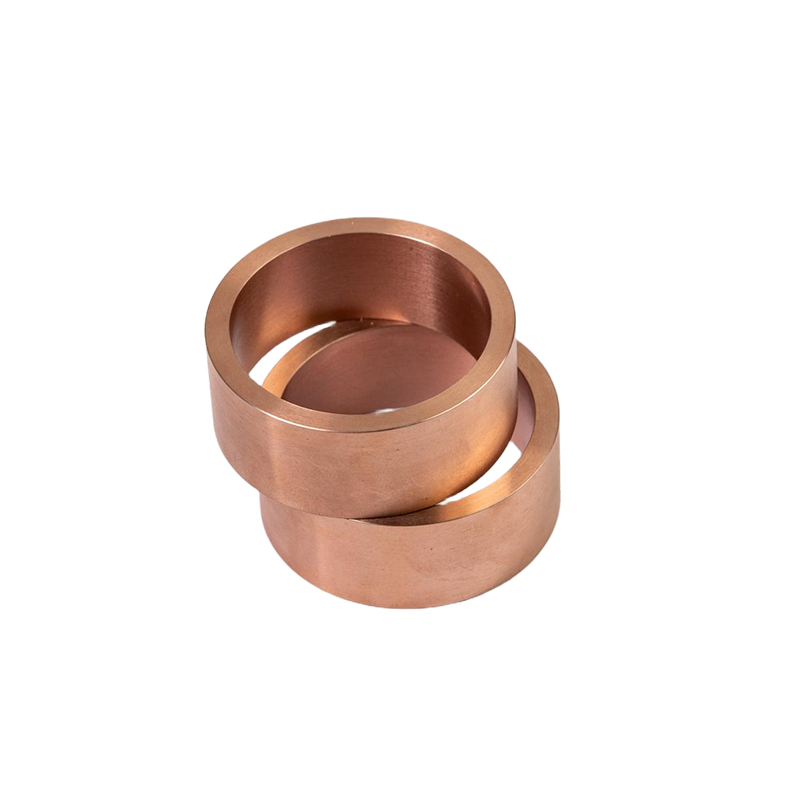

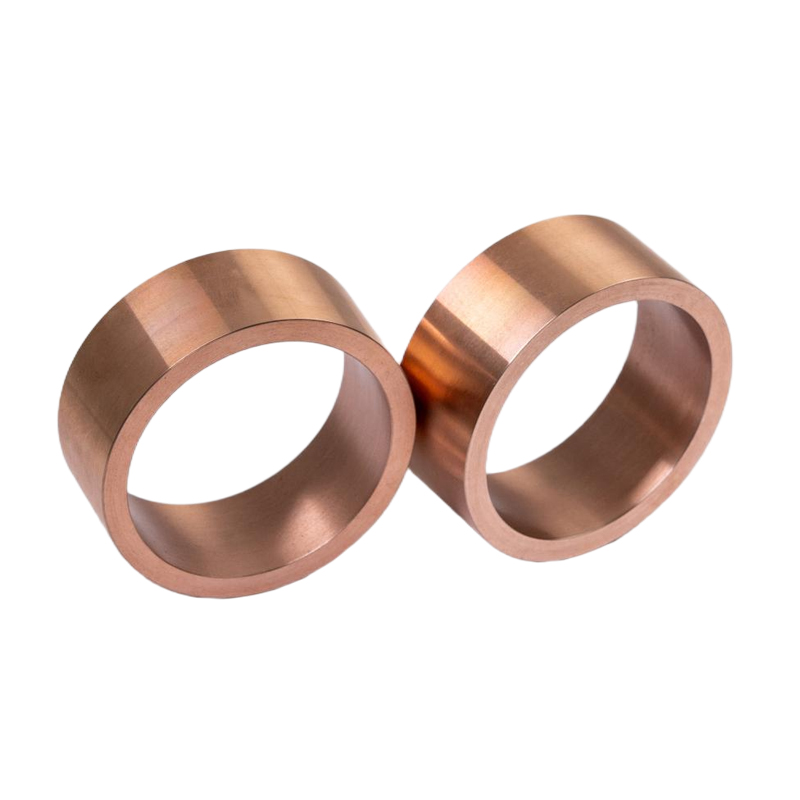

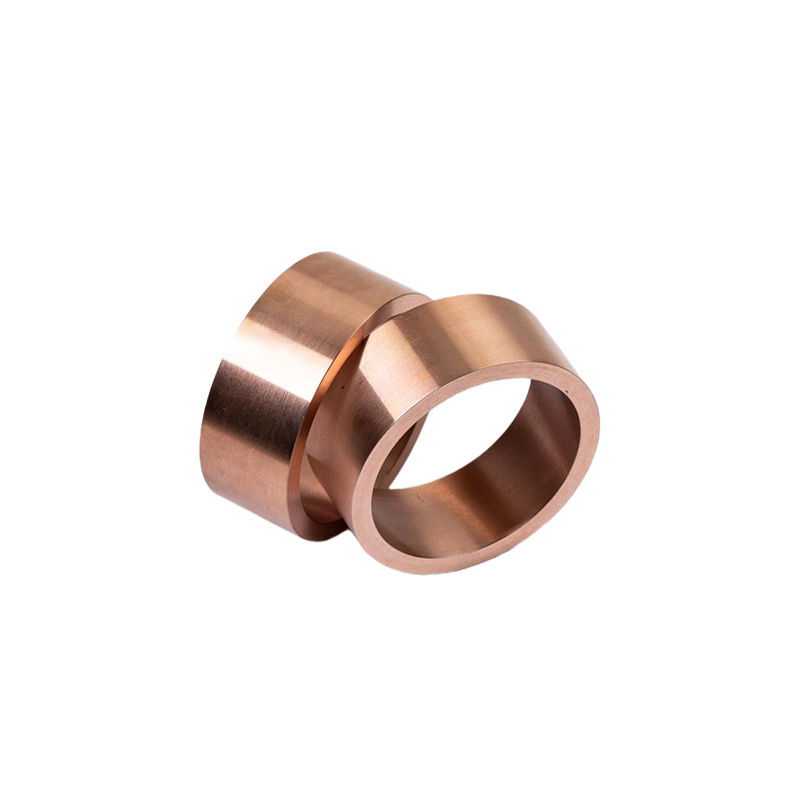

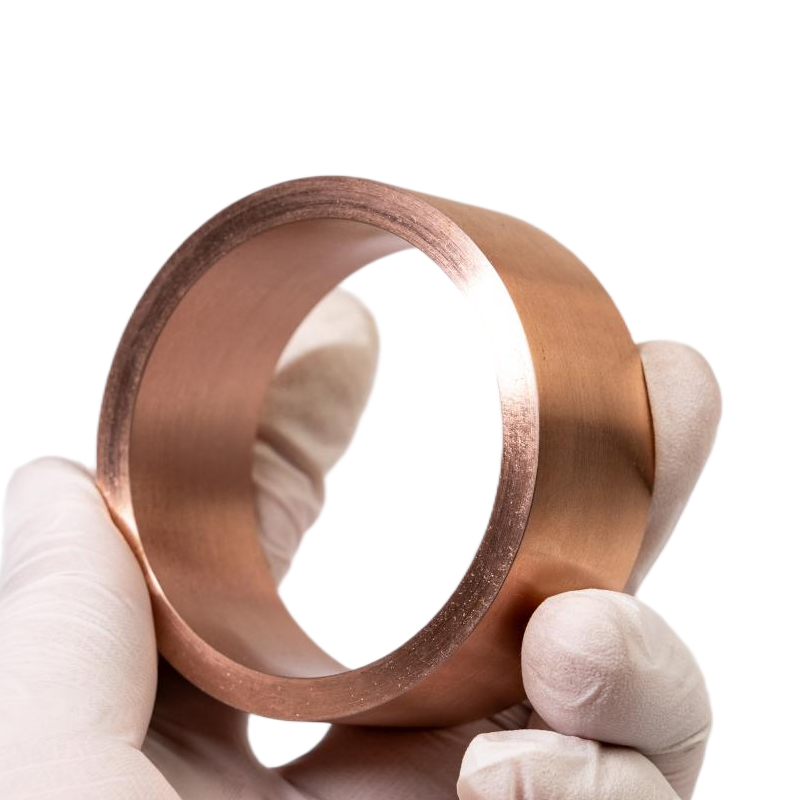

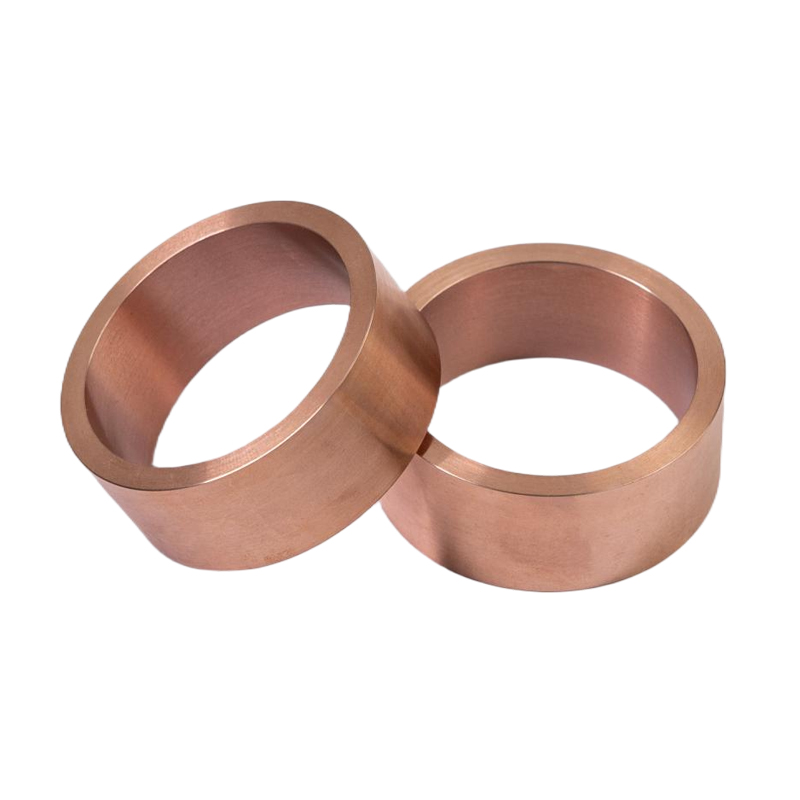

Our Custom Non-Standard Tungsten Copper Alloy Rings are high-density, precision-machined cylindrical components designed for extreme thermal, electrical, and mechanical environments. Produced via advanced powder metallurgy (isostatic pressing, high-temperature sintering, and vacuum copper infiltration), these rings integrate the high heat hardness, low thermal expansion, and arc erosion resistance of tungsten with the exceptional electrical and thermal conductivity of copper.
Engineered to exact customer dimensions and drawings, these custom rings and bushings deliver outstanding concentricity, tight wall-thickness tolerances, and smooth surface finishes for seam welding wheels, high-voltage arc contacts, EDM rotary electrodes, and wear-resistant guide sleeves.
Material Composition: Available in standard and custom grades (W80Cu20, W75Cu25, W70Cu30, W50Cu50)
Manufacturing Process: Isostatic Powder Pressing -> Vacuum Sintering -> Copper Infiltration -> Precision CNC Turning & Grinding
Outer Diameter (OD): Customized per drawing specs
Inner Diameter (ID): Customized per drawing specs
Height / Width: Customized cut-to-length and precision ground
Machining Tolerance: Up to +/- 0.005 mm (Per drawing requirements)
Surface Finish: Fine turned, ground, or mirror polished (Ra 0.4 - Ra 1.6)
Custom Capabilities: Precision lathe turning, internal boring, chamfering, oil-grooving, wire EDM, and surface lapping according to 2D/3D technical drawings (PDF, STEP, CAD).
Parameter | Standard / Custom Capability |
Available Alloy Grades | W80Cu20 / W75Cu25 / W70Cu30 / Custom Ratios |
Form Factor | Non-Standard Cylindrical Ring, Bushing, Sleeve |
Dimensional Range | Tailored to custom ID, OD, and height specifications |
Concentricity & Runout | Strict geometric tolerance control |
Quality Inspection | Density testing, CMM dimensional measurement, ultrasonic flaw check |
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
